Heavy Duty Electric Cylinder

Standard model thrust capacities from 500 lbs. to 40,000 lbs.

Electric Cylinders are supplied in a Single Reduction, Double Reduction, or an In-Line Configurations. Electric Cylinders are intended for use in industrial environments and feature ground and hard chrome plated actuator tubes with industrial enamel paint on exterior surfaces. Heavy duty electric cylinders can be supplied for outdoor applications.

Available with ball screw and acme screw drives.

Electric Cylinder Literature

Additional Features

  • Built to specification.
  • For outdoor or good grade applications, contact Nook Engineering for recommended alterations.
  • Ground and hard chrome plated actuator tubes.
  • Use individually or in multiple electric cylinder arrangements
  • Premium finishes are available including Epoxy, Outdoor, Marine, or per customer specification.


Engineering Tools

Electric Cylinder Engineering Calculators, Engineering Tools, & Technical Information. A comprehensive library of helpful electric cylinder resources.

Product Selector

Easily design your own electric cylinder system based on your unique application with the DESIGN GUIDE PRO tool.

Heavy Duty Electric Cylinders

Electric Cylinder Types

ELECTRIC CYLINDER - DD (500 to 40,000 lbs.)

An alloy steel worm drives a high strength bronze worm gear (drive sleeve). The worm shaft is supported on anti-friction tapered roller bearings with external seals provided to prevent loss of lubrication (sealed radial ball bearings available). Single reduction.

  • Drive sleeve is supported on anti-friction tapered roller or ball thrust bearings.
  • Ductile iron housing proportioned to support the rated capacity.
  • Part Number Reference

ELECTRIC CYLINDER - ILA (1,000 to 21,000 lbs.)

Designed to have a motor or gear reducer directly coupled to the lift shaft for faster, more precise operation and higher duty cycles. Inline.

  • Standard trunnion pin mounting.
  • Easily adapted for use with servo motors and planetary gear reducers.
  • Available with keyed actuator tubes.
  • Part Number Reference

ELECTRIC CYLINDER - RAD (3,500 to 40,000 lbs.)

Same as DD with a second stage gear reduction to provide higher thrust at lower speeds. Single and double reduction.

  • Reducer and motor can be mounted in eight possible positions for maximum flexibility.
  • Variety of worm gear ratios resulting in a wide range of speeds and thrust capacities.
  • Part Number Reference

Electric Cylinder Accessories

Configure a Complete Lifting System

Nook Industries offers a wide assortment of electric cylinder accessories to accommodate specific applications. From motor mounts to limit switches to lubricant, Nook can easily configure a complete electric cylinder system.

Start with a base electric cylinder and add accessories to configure a complete linear motion system. Some accessories include:

Hardware Power Sensing & Control
  • Line Shafting
  • Gear Boxes
  • Couplings
  • Bellow Boots
  • Support Bearings
  • Motor Mounts
  • RA Reducers
  • AC Motors
  • Stepper/Servo Motors
  • Handwheels
  • Sensors
  • Limit Switches
  • Counters
  • Encoders
  • Control Panels

And many more...


Explore Electric Cylinder Accessories

Specialty Coatings for Demanding Environments


  • Excessive Heat and Humidity
  • Extreme Cold and Ice
  • Water
  • Dust and Dirt
  • Food Handling
  • Corrosion

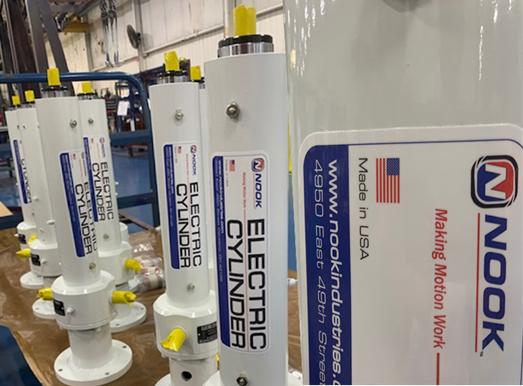

Electric Cylinder Application: Foundry Automation

These heavy duty electric cylinders will optimize the linear motion of equipment used in the Metal Casting Industry....
