Nook Industries offers a highly configurable line of modular linear actuators specially developed for explosion-protection zones. These linear actuators are are commonly used in bottling technology for explosive substances such as:

  • Alcohol
  • Benzene
  • Gasoline
  • Flammable Chemical Liquids

Available in a variety of lengths and drive properties, these linear motion systems can be designed and built to the exact requirements of the application. These linear actuators are specially developed for the explosion-protection field meet the highest safety standards in accordance with the following guidelines:

  • ATEX-R2014/34/EU
  • II 2G Ex h IIB T4 Gb
  • II 3D Ex h IIIB T125°C Dc
  • ISO 80079-36:2016
  • ISO 80079-37:2016
  • Technical Rules for Hazardous Substances (TRGS) 727

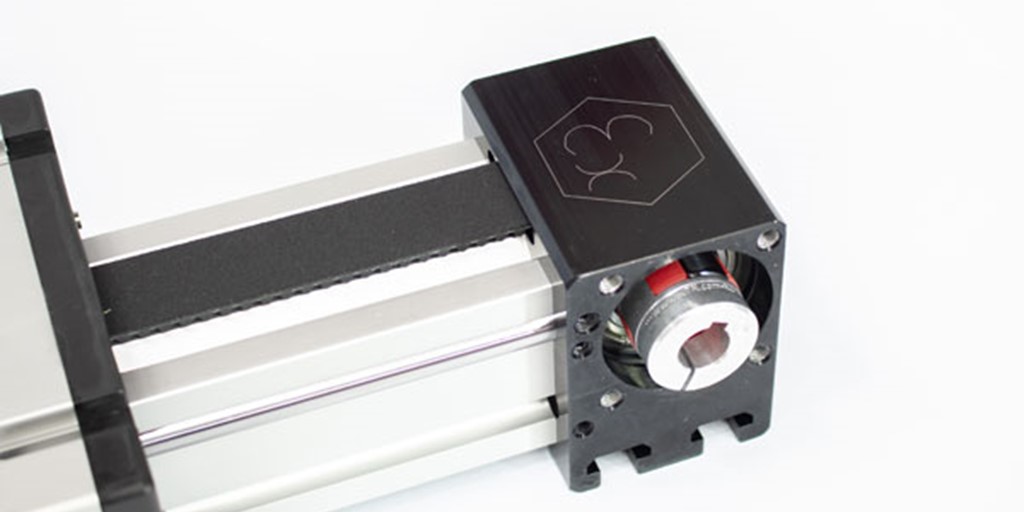

Toothed belt driven linear actuators axes from the ELZex and ELFZex series are certified for use in explosion-protection areas. The linear systems conform with the new EN ISO 80079-36 and -37 norm for mechanical explosion protection. Furthermore, the axes are ATEX-approved and can therefore be used in Zone 2 for gas and dust.

With this approach, it is possible to easily meet the demands of many new applications. The modular linear actuator systems are designed as a complete package to also include accessories such as limit switches and couplings with ATEX approval.

Learn More



Technical Features

  • Multiple installation positions
  • Maximum length 6000 mm (ELZex)
  • Maximum length 3000 mm (ELFZex)
  • Allowable surface temperature 125°C
  • Repeat accuracy ± 0.1 mm
  • Traverse speed <1 m/s
  • Toothed belt design Conti HTD 5M/8M HP-PAZ antistatic





Use Our Linear Actuator Product Selector



Easily design your own linear actuator system based on your unique application with the DESIGN GUIDE PRO tool. Enter your parameters to determine the best product fit.



Get Help with an Application

Special circumstances can sometimes require tailor-made solutions. Often the problem cannot be solved by just using individual stainless components.

Our engineering team not only advises you on the provision of the ideal linear unit for your machine design, but also supports you with questions about production in clean rooms. As always, our Engineering Support Teams are always on stand-by to help with your linear motion application.
